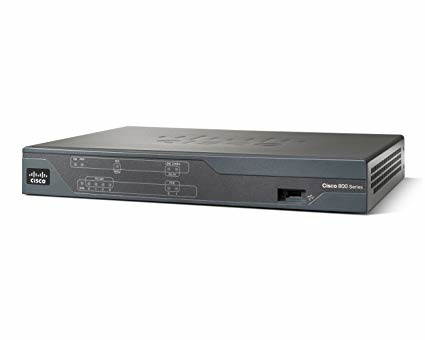

Cisco C881-K9 880 Series Integrated Service Router -C881-K9 880
Los enrutadores de la serie 800 de Cisco , los enrutadores asequibles con servicios de red importantes, admiten a unos 50 usuarios cuando están diseñados para proporcionar la conectividad WAN segura y confiable que necesitan sus pequeñas oficinas y trabajadores remotos. La serie Cisco 800 actualmente consta de los modelos 800M, 810, 860, 880 y 890, pero otros productos de esta serie son modelos de fin de venta, como 815, 851, 857, etc. Esta serie puede ofrecer a las pequeñas empresas un despliegue flexible, de alto rendimiento y de máquina a máquina, a través de la conectividad WAN que incluye xDSL, Ethernet, 3G y 4G, y fibra, alta seguridad que incluye cifrado, firewall y filtrado de URL.
CISCO881-K9 Specification |
|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | CISCO881-K9 |
| Product Type | Router – 4-port switch (integrated) |
| Form Factor | Desktop |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Capacity | IPSec VPN tunnels : 20 |
| Network / Transport Protocol | L2TP, IPSec, FTP, DHCP, DNS, L2TPv3, DDNS |
| Routing Protocol | OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, PIM-SM, GRE |
| Remote Management Protocol | Telnet, SNMP 3, HTTP, HTTPS, SSH |
| Encryption Algorithm | LEAP, DES, Triple DES, SSL, PEAP, TKIP, PKI, 128-bit AES, 192-bit AES, 256-bit AES |
| Authentication Method | RADIUS, TACACS+ |
| Features | NAT support, VPN support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, Stateful Packet Inspection (SPI), content filtering, DiffServ support, MAC address filtering, IPv6 support, High Availability, Intrusion Prevention System (IPS), URL filtering, Stateful Failover, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Link Fragmentation and Interleaving (LFI), Dynamic Multipoint VPN (DMVPN), WAN failover, DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), DNS proxy, Bidirectional Forwarding Detection (BFD) |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x |
| DRAM Memory | 256 MB (installed) / 768 MB (max) |
| Flash Memory | 128 MB |
| LED Status Lights Indicators | Port status, power |
|
Connectivity Slots |
|
| Router Interfaces | LAN : 4 x 10Base-T/100Base-TX – RJ-45 Management : 1 x console – RJ-45 WAN : 1 x 10Base-T/100Base-TX – RJ-45 USB : 1 x 4 PIN USB Type A |
| Power Supply | |
| Power Device | Power adapter – external – 60 Watt |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
|
Dimensions / Weight / Miscellaneous |
|
| Width | 32.5 cm |
| Depth | 24.9 cm |
| Height | 4.4 cm |
| Weight | 2.5 kg |
| Compliant Standards | CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, EN50082-1, EN55022 Class B, ICES-003 Class B, EN 61000-6-1, AS/NZ 3548 Class B, EN 60555-2, FCC CFR47 Part 15, EN300-386, FCC CFR47 Part 15 B, VCCI V-3 |
|
System Software |
|
| IOS Software Included | Cisco IOS Advanced Security |
